KF25 Rubber Hose Nozzles 304 Stainless Steel

  • KF25 Rubber Hose Nozzles 304 Stainless Steel
  • KF25 Rubber Hose Nozzles 304 Stainless Steel
  • KF25 Rubber Hose Nozzles 304 Stainless Steel
  • KF25 Rubber Hose Nozzles 304 Stainless Steel

KF25 Rubber Hose Nozzles 304 Stainless Steel

    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Terms of Trade: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Piece/Pieces
    Delivery Time: 15 Days
    Productivity: 10000ton
    Brand: KAYSEN
    Transportation: Ocean,Air
    Place of Origin: China
    Supply Ability: 10000ton
    Certificate: CE,FCA,SGS,3A
    HS Code: 7307230000
    Port: Shanghai Port,Ningbo Port,Tianjin Port

Product Description

Product Description

We manufacture a comprehensive range of flanges and flanged components such as nipples, elbows, tees, and crosses in all standard vacuum flange systems.
These adapter Rubber hose nozzles are KF-25 to rubber hose and fit a 12.7 mm OR 1/2in ID rubber hose.
Fast connect/disconnect---The ISO-KF flanges are often called quick flange fittings because they are quick to assemble.
They are commonly used to make connections between ISO-KF fittings and rubber vacuum hoses.
Genderless Mating; KF fittings are ideal for high vacuum environments (10-8 torr).
Material: Stainless Steel 304;

Package Content: 1 x Flange Barb Adapter

Product Features

• Product Name: Rubber Hose Nozzle
• Material: 304 Stainless Steel; Aluminium
• Flange Size: NW/KF-25
• Barb (Fit Hose Inner Dia) : 12.7 mm or 1/2 inch ID

Centering Ring: 304 S.S. or Aluminum (Other material available upon request)
O`ring: Viton or NBR
Outer Ring: Aluminum

Overpressure Ring: SS304

Size: KF10-50

Vacuum range : 1×10-8 Torr
Temperature range : 150 °C(Viton) / 80 °C(NBR)

Quality Inspection
▪ PMI test to verify material grade
▪ Dimension controlling during fabricating and finished
▪ Visual and surface 100% examination before shipment
▪ Packed in carton box firstly, then in wooden case

KF fittings are ideal for high vacuum environments.
KF Components, KF Fittings and KF Adapters are available in a variety of configurations.
Low price with high quality! Directly from us, the manufactory.
We specialize in custom configurations of KF/NW fittings, components & adapters.

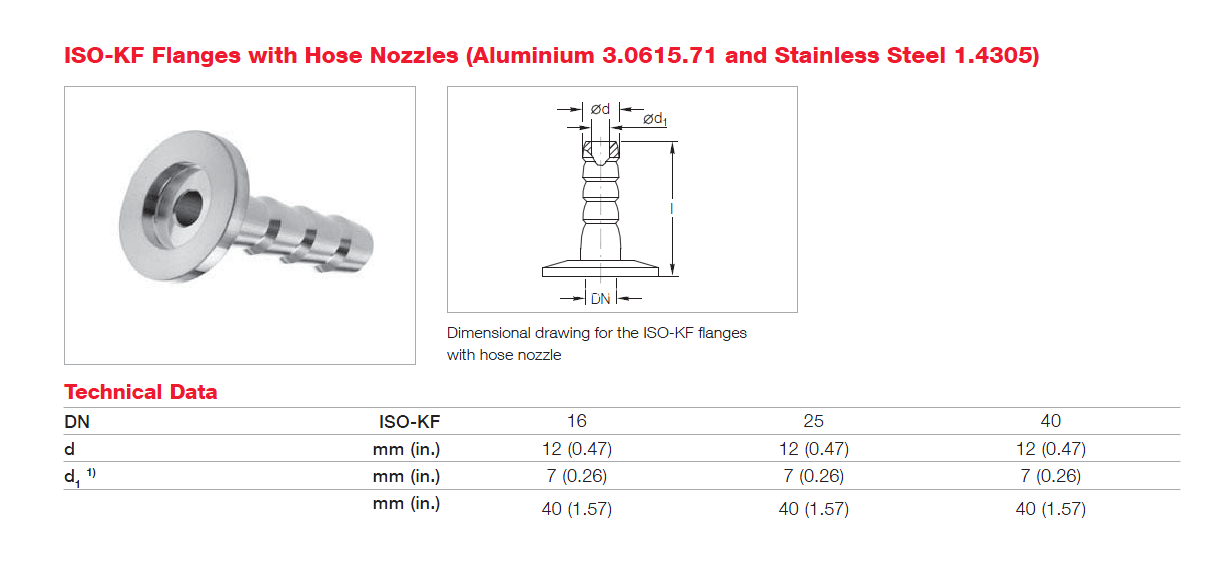

Product Drawing

ISO-KF Flanges with Hose Nozzles
